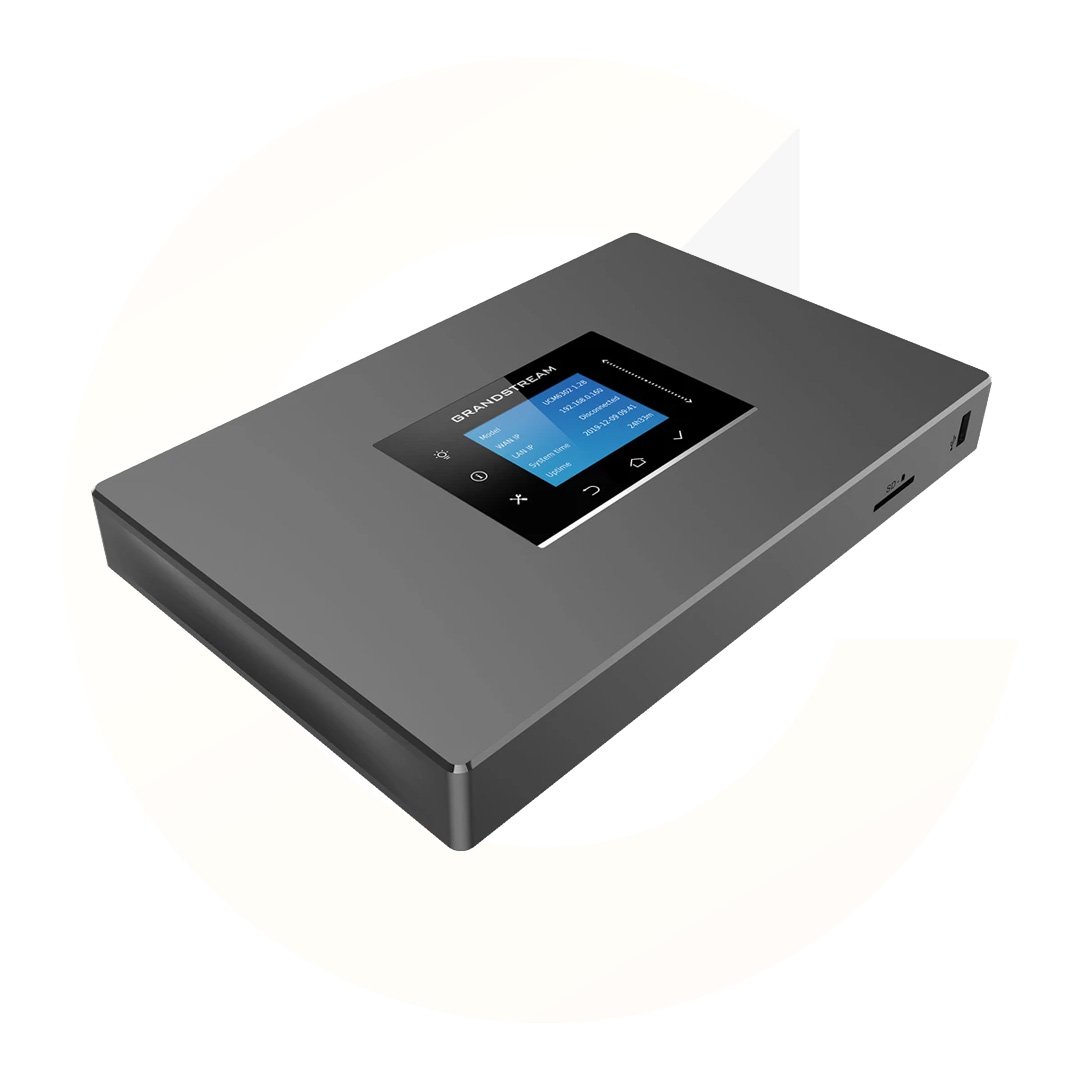

Grandstream UCM6301 IP-PBX Phone System
Key Features
- Type: IP PBX System
- Users: Up to 500
- Concurrent Calls: Up to 75
- Network Ports: 3 × Gigabit Auto-Sensing RJ45
- PoE+: Integrated PoE+
- NAT Router: Supported
Specifications
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | Grandstream UCM6301 |
| Type | IP PBX System |
| Users | Up to 500 |
| Concurrent Calls | Up to 75 |
| Caller ID | Yes |
| Speed Dialer | No |
| Redial Memory | Unmentioned |
| Display | Unmentioned |
| Flash Button | No |
| Auto Answer | No |
| Hold Key | No |
| Mute Key | No |
| Navigation Key | No |
| Transfer Key | No |
| Headphone Jack | No |
| Speaker | No |
| Network Interfaces | Three Gigabit Auto-Sensing RJ45 Network Ports with Integrated PoE+ and NAT Router Support |
| USB Interface | 1 × USB 3.0 |
| SD Card Interface | 1 × SD Card |
| Power Source | Universal Power Supply |
| Input Power | 100–240VAC, 50/60Hz |
| Output Power | DC 12V, 1.5A |
| Wall Mount | No |
| Dimensions | 27.94 × 246.38 × 165.1 mm |
| Weight | 1.2 Kg |
| Color | Gray |
| Warranty | 1 Year (Without Adapter) |
| Country of Origin | USA |
| Made in / Assembled | China |
Description
The Grandstream UCM6301 IP-PBX Phone System is designed to help businesses build scalable unified communication and collaboration solutions. It supports up to 500 users and 75 concurrent calls, making it suitable for business and professional communication environments.
The UCM6301 features three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and NAT router support. It also provides zero-configuration provisioning for Grandstream SIP endpoints and includes a built-in conferencing and meetings platform that supports desktop environments, the Wave application, and SIP endpoints.
The system supports Wave for Android, iOS, Chrome, and Firefox, allowing communication with UCM6300 users and solutions. It also provides an API for third-party integrations, including CRM and PMS platforms.
Unified Communication & Collaboration
The UCM6301 includes a built-in conferencing and meetings platform supporting desktop systems, Wave applications, and SIP endpoints. Wave is available for Android, iOS, Chrome, and Firefox, allowing users to communicate with UCM6300 users and solutions.
The system also provides zero-configuration provisioning for Grandstream SIP endpoints, simplifying deployment and configuration of compatible devices.
Network & Connectivity
The UCM6301 features three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and NAT router support. An automated NAT firewall traversal service is also provided to facilitate secure remote connections.
Security
The UCM6301 provides advanced security protection using secure boot, a unique certificate, and a random default password designed to protect calls and accounts.
Voice & Video Support
The system supports the Full-Band Opus voice codec and multiple video codecs, including H.264, H.263, H.263+, H.265, and VP8. The listed specifications also include jitter resilience of up to 50% packet loss.
Cloud Management & Integration
The UCM6301 is compatible with GDMS for cloud setup, management, and monitoring. An API is available for third-party integrations, including CRM and PMS platforms.
Software Platform
The UCM6301 is based on the Asterisk version 16 open-source telephony operating system, providing the underlying platform for its IP-PBX functionality.
Grandstream UCM6301 Price in Bangladesh
For the latest Grandstream UCM6301 price in Bangladesh, availability, product specifications, and warranty information, contact Ellipse Technologies Ltd. Pricing may vary depending on current product availability and configuration.
