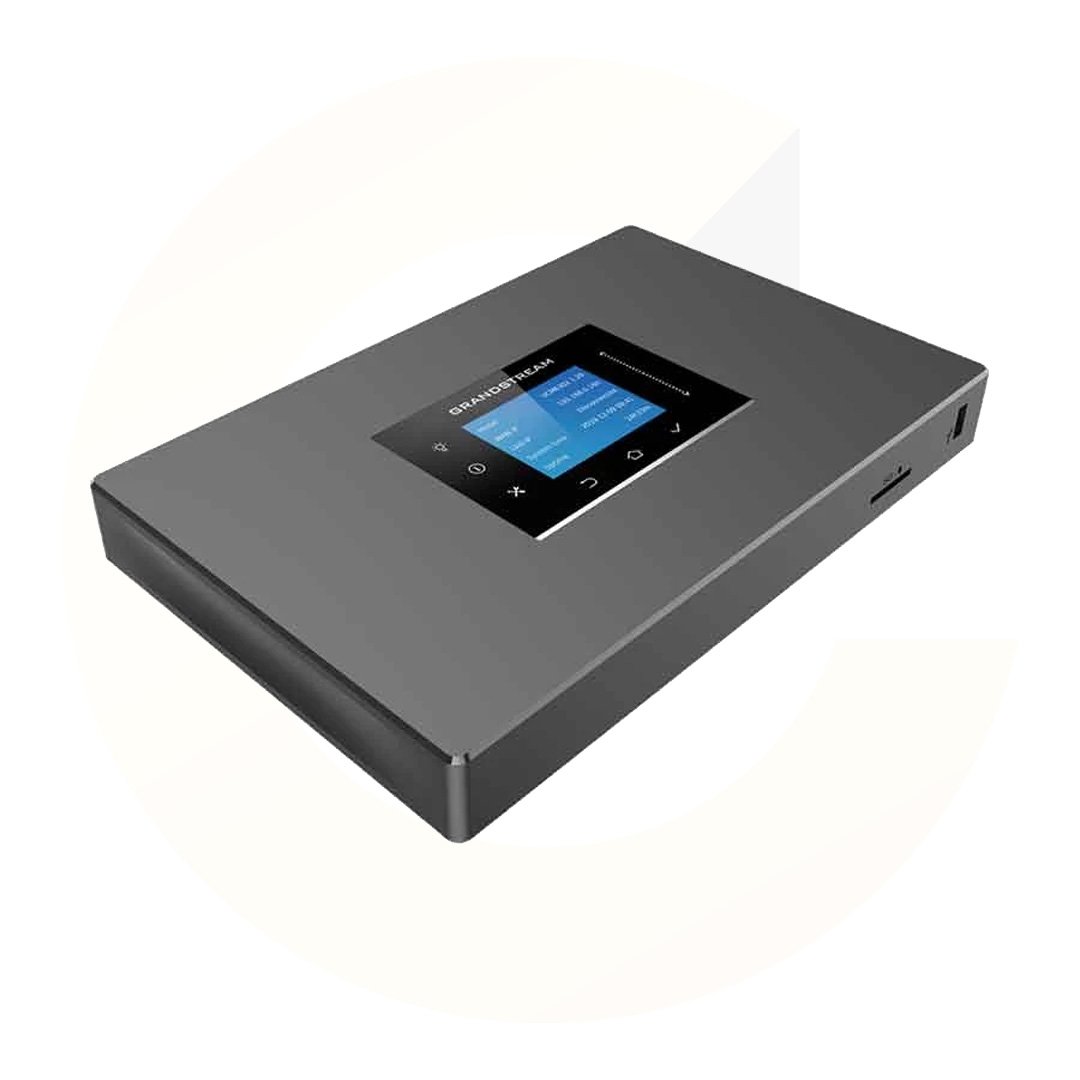

Grandstream UCM6300A IP PBX System
Key Features
- Type: IP PBX System
- Users: Up to 250
- Network Ports: 3 × Self-Adaptive Gigabit with PoE+
- NAT Router: Yes
- Wall Mount: Yes
Specifications
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | Grandstream UCM6300A |
| Type | IP PBX System |
| Maximum Users | 250 |
| Concurrent Calls (G.711) | 50 |
| Max Concurrent SRTP Calls (G.711) | 50 |
| Conference Rooms | 3 |
| Maximum Conference Participants | Up to 50 Parties |
| Caller ID | Yes |
| Speed Dialer | Yes |
| Display | LCD Display |
| LED Indicators | No |
| Voice Mail | Yes |
| Card Slot | Yes |
| Card Type | SD Card |
| USB Interface | 1 × USB 3.0 |
| FXS Ports | None |
| FXO Ports | None |
| Network Interfaces | 3 × Self-Adaptive Gigabit Ports with PoE+ |
| Network Mode | Switched, Routed or Dual Mode |
| NAT Router | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Power Source | Universal Power Supply |
| Input Power | 100–240VAC, 50/60Hz |
| Output Power | DC 12V, 1.5A |
| Wall Mount | Yes |
| Operating System | Based on Asterisk Version 16 |
| Dimensions | 270 × 175 × 36 mm |
| Weight | 705 gm |
| Color | Black |
| Warranty | 1 Year (Without Adapter) |
| Country of Origin | USA |
| Made in / Assembled | China |
Description
The Grandstream UCM6300A IP PBX System is designed to provide a centralized IP-based communication platform for businesses. It supports up to 250 users, 50 concurrent G.711 calls, and 50 concurrent SRTP calls, along with conferencing capabilities of up to 50 parties across 3 meeting rooms.
The UCM6300A features three self-adaptive Gigabit network ports with integrated PoE+, supporting switched, routed, or dual-mode operation. It also includes NAT router functionality and a USB 3.0 peripheral interface.
The system provides a wide range of business telephony features, including call park, call forwarding, call transfer, call waiting, caller ID, IVR, music on hold, call queues, paging/intercom, voicemail, voicemail-to-email, fax-to-email, speed dial, call follow-me, blacklist/whitelist, voice meetings, BLF, and emergency calling.
Business Telephony Features
The UCM6300A supports a broad range of business communication features, including:
- Call Park
- Call Forward
- Call Transfer
- Call Waiting
- Caller ID
- Call Recording
- Call History
- IVR
- Music on Hold
- Call Routes
- DID and DOD
- DND and DISA
- Ring Groups
- Simultaneous Ringing
- Time Schedules
- PIN Groups
- Call Queues
- Pickup Groups
- Paging and Intercom
- Voicemail
- Voicemail to Email
- Fax to Email
- Speed Dial
- Callback
- Dial by Name
- Emergency Calling
- Call Follow Me
- Blacklist and Whitelist
- Voice Meetings
- BLF
- Event List
- Feature Codes
- Busy Camp-On / Call Completion
- Voice Control
Call Center & Auto Attendant
The UCM6300A supports multiple configurable call queues with automatic call distribution (ACD) based on agent skills, availability, and workload. It also provides in-queue announcements.
The customizable Auto Attendant supports up to 5 layers of IVR in multiple languages.
Network & Connectivity

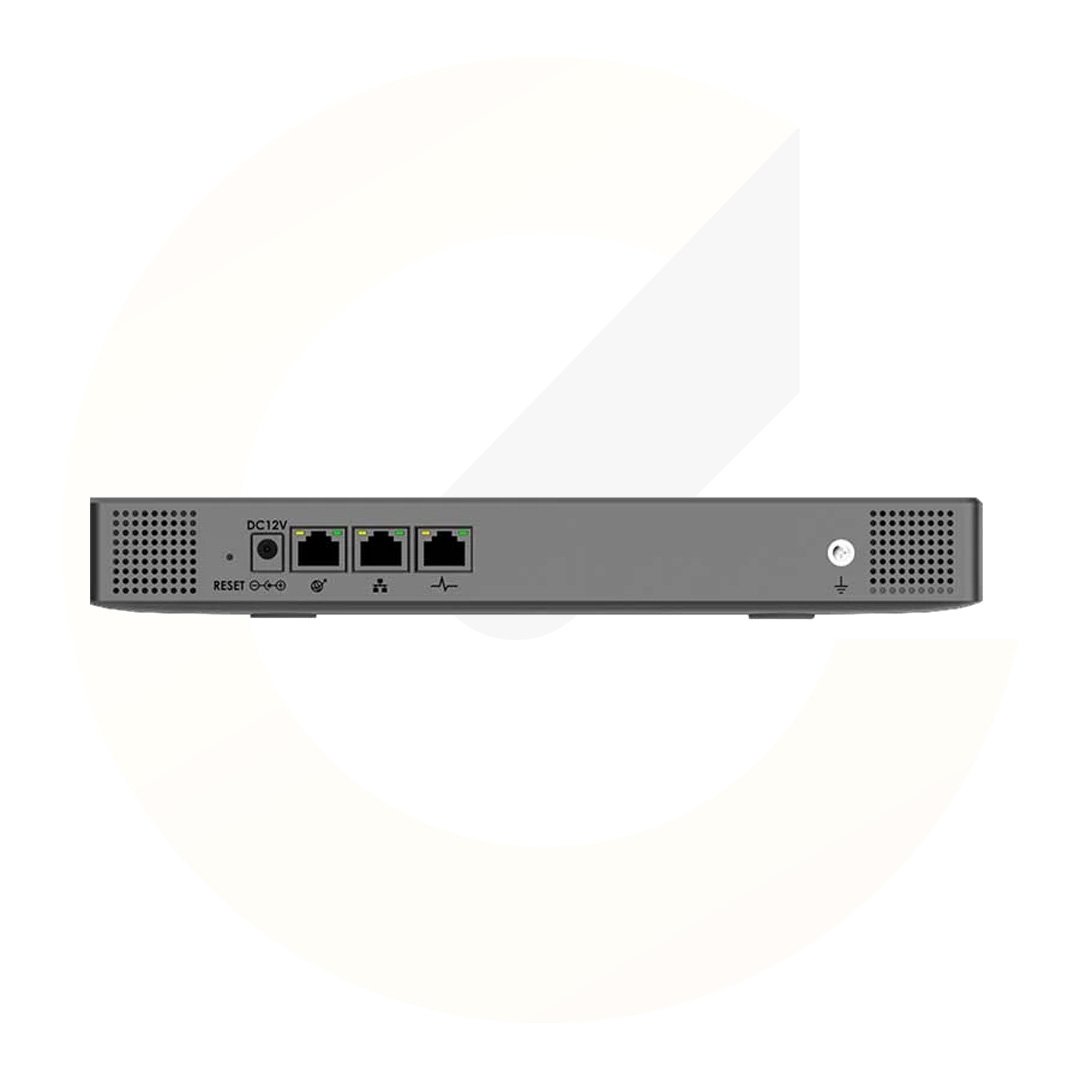

The system features 3 × self-adaptive Gigabit network ports with integrated PoE+. These ports support switched, routed, or dual-mode operation.
The built-in NAT router supports router and switch modes and is designed to facilitate network connectivity within the IP-PBX environment.
Voice & Fax Capabilities
The UCM6300A supports voice and fax codecs including:
- Opus
- G.711 A-law/U-law
- G.722
- G.722.1
- G.722.1C
- G.723.1
- G.726-32
- G.729A/B
- iLBC
- GSM
- T.38
Voice processing features include carrier-grade Line Echo Cancellation, Dynamic Jitter Buffer, NetEQ, FEC 2.0, modem detection, and automatic switching to G.711. The provided specifications list jitter resilience of up to 50% audio packet loss.
Security & Encryption
The UCM6300A supports multiple security technologies, including:
- SRTP
- TLS
- HTTPS
- SSH
- 802.1X
- AES-encrypted XML configuration files
Caller ID support includes Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227-BT, and NTT formats.
Provisioning & Integration
The system supports mass provisioning using AES-encrypted XML configuration files and automatic discovery and provisioning of Grandstream IP endpoints through ZeroConfig.
The provided specifications also list support for DHCP Option 66, multicast SIP SUBSCRIBE, mDNS, and event lists between local and remote trunks.
A full API is available for integration with third-party platforms and applications.
Grandstream UCM6300A Price in Bangladesh
For the latest Grandstream UCM6300A price in Bangladesh, availability, product specifications, and warranty information, contact Ellipse Technologies Ltd. Pricing may vary depending on current product availability and configuration.
