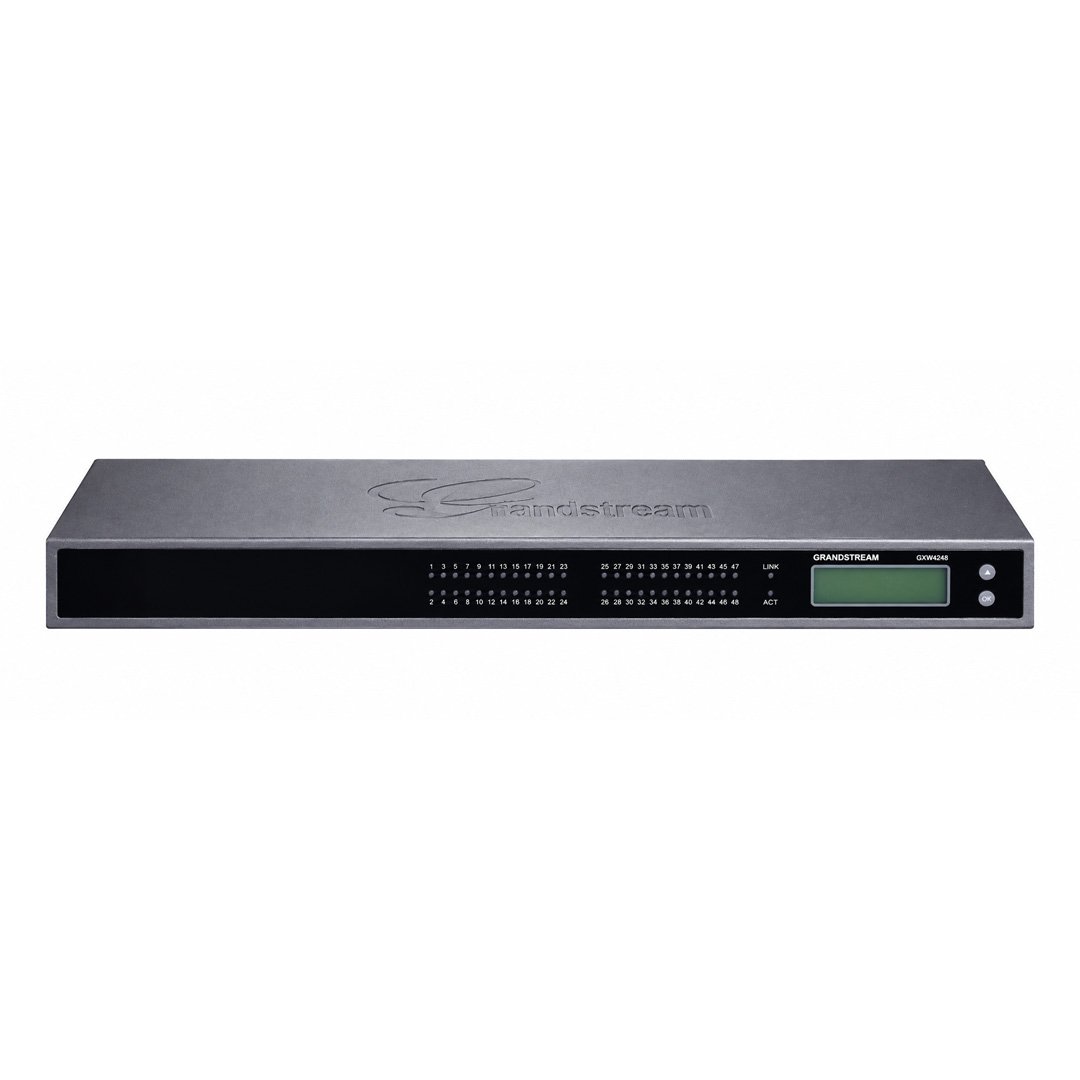

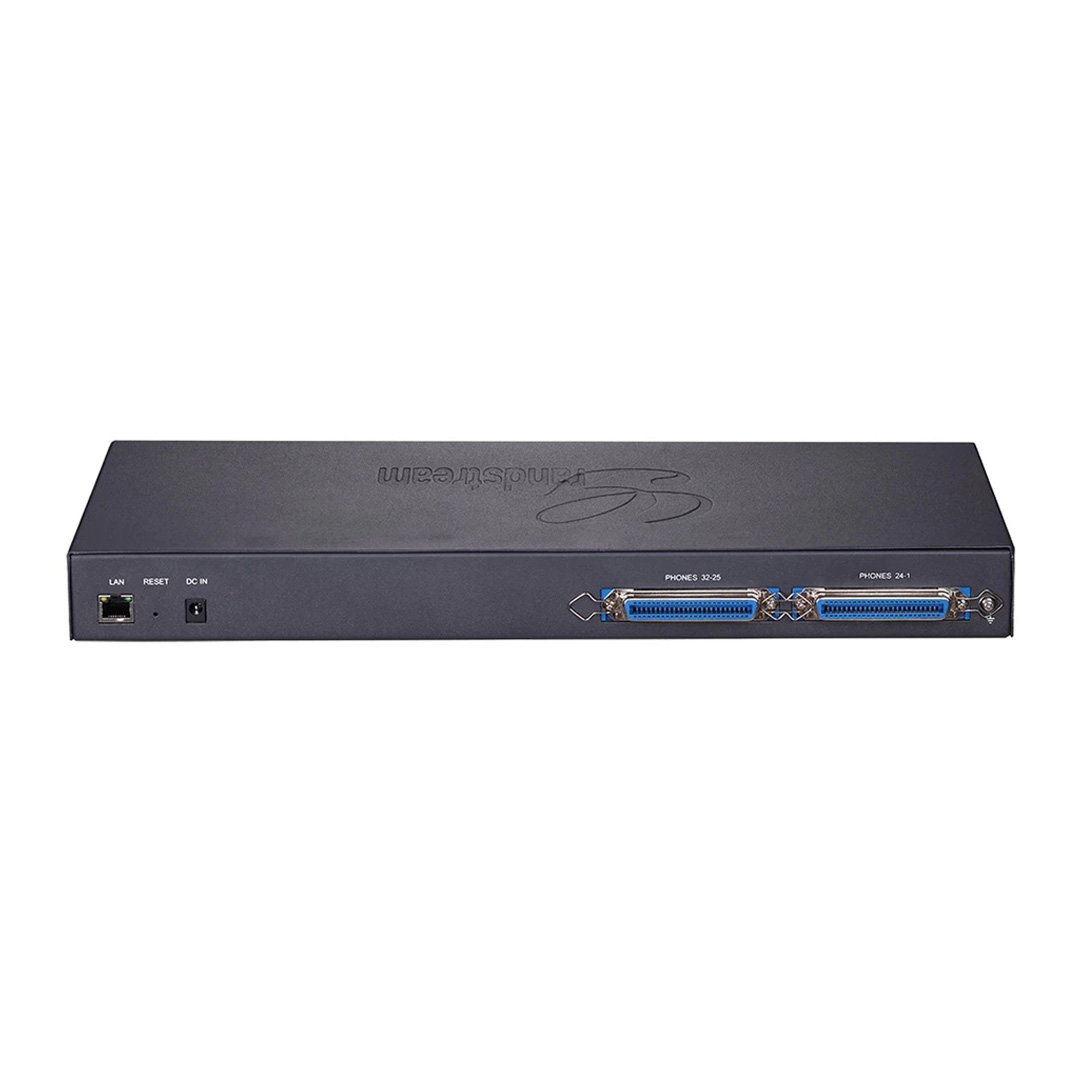

Grandstream GXW4248 48-Port FXS VoIP Gateway
Key Features
- Brand: Grandstream
- Caller ID: Yes
- Call Block: Yes
- Conference Call: 3-Way Conference
- Display: Backlit Graphical LCD Display
- Transfer Key: Yes
- Installation: Desktop and Rack Mount
- Color: Black
Specifications
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | Grandstream GXW4248 |
| Type | Gateway |
| FXS Ports | 48-Port |
| Number of Phone Lines | 1 Line |
| Caller ID | Yes |
| Caller ID Memory | No |
| Call Waiting Caller ID | No |
| Call Block | Yes |
| Conference Call | 3-Way Conference |
| Speed Dialer | No |
| Redial Button | No |
| Redial Memory | No |
| Auto Redial | Yes |
| Call Log | No |
| Display | Backlit LCD Display |
| LCD Backlight | Yes |
| LCD Backlight Colour | Graphical |
| LED Indicators | Yes |
| Voice Mail | No |
| Flash Button | No |
| Auto Answer | No |
| Hold Key | No |
| Mute Key | No |
| Navigation Key | No |
| Transfer Key | Yes |
| SIM Slot | No |
| Card Slot | No |
| Headphone Jack | No |
| Speaker | No |
| Network Interface | 10/100/1000 Mbps |
| Wi-Fi | No |
| Bluetooth | No |
| Power Source | Universal Power Supply |
| Input Power | 100–240VAC, 50–60Hz |
| Output Power | 24VDC / 6.25A |
| Network Protocols | TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP |
| Installation | Desktop and Rack Mount with Front Brackets |
| Wall Mount | Unmentioned |
| Dimensions | 440 × 255 × 44 mm |
| Weight | 2.63 Kg |
| Color | Black |
| Warranty | 1 Year (Without Adapter) |
| Country of Origin | USA |
| Made in / Assembled | China |
Description
The Grandstream GXW4248 48-Port FXS VoIP Gateway is designed to connect a large number of traditional analog telephone devices to IP-based communication networks. With 48 FXS ports, it provides a scalable voice connectivity solution for business, corporate, office, and institutional telephony environments.
The GXW4248 features a 10/100/1000Mbps auto-sensing RJ45 network interface and supports SIP signaling over UDP, TCP, and TLS. It provides multiple telephony and management features, including caller ID, call blocking, call transfer, 3-way voice conferencing, failover SIP server support, and automated provisioning.
The gateway can be installed on a desktop or in a rack using its front brackets, making it suitable for structured IT and communication environments.
Telephony Features
The GXW4248 supports Caller ID display or blocking, call forwarding, call transfer, Do Not Disturb, and 3-way voice conferencing. It also supports a range of caller ID formats and automatic redial functionality.
The gateway provides 4 distinct SIP server profiles per system with independent SIP accounts per telephone port.
Network & Signaling
The GXW4248 features a 10/100/1000Mbps auto-sensing RJ45 network port and supports SIP (RFC 3261) over UDP/TCP/TLS.
DTMF transmission methods include in-audio, RFC2833, and/or SIP INFO. Network and QoS features include DiffServ, ToS, and 802.1P/Q VLAN tagging.
Security & Provisioning
The gateway provides SRTP, TLS/SIPS, and HTTPS security, including AES-128 encryption for SRTP, TLS, and HTTPS.
Automated provisioning options include TFTP, HTTP, HTTPS, and TR-069. Management options include Syslog, HTTPS, web browser management, voice prompts, and TR-069.
Fax Over IP
The GXW4248 supports T.38 Fax-over-IP for reliable fax communication and is designed to support Fax Pass-through applications.
Installation & Electrical Protection
The GXW4248 supports desktop and rack mounting with front brackets, allowing it to be deployed in different office and IT infrastructure environments.
It also provides over-voltage and over-current protection based on ITU-T Recommendation K.21 Basic Test Level.
Grandstream GXW4248 Price in Bangladesh
For the latest Grandstream GXW4248 price in Bangladesh, availability, product specifications, and warranty information, contact Ellipse Technologies Ltd. Pricing may vary depending on current product availability and configuration.
