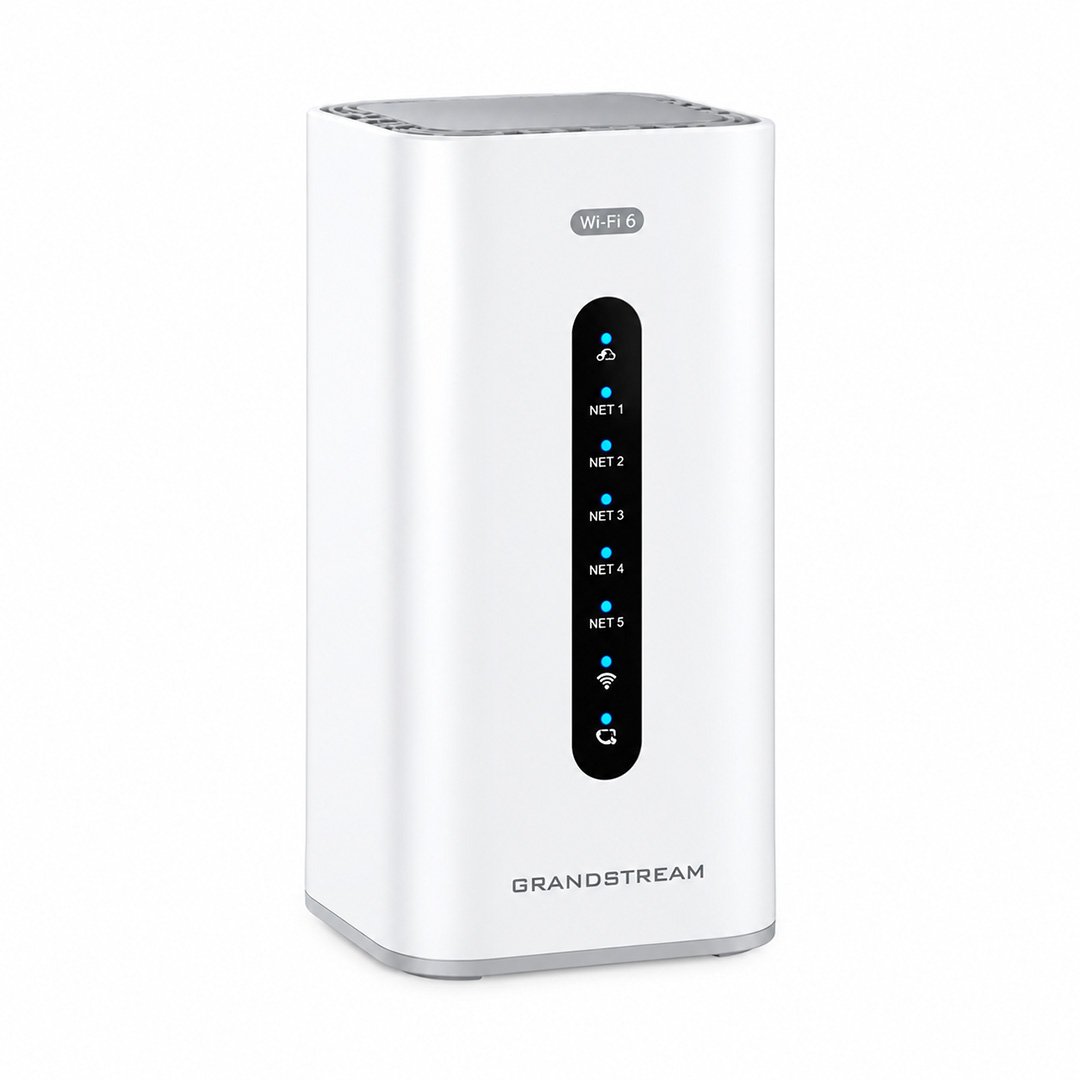

Grandstream GCC6010W Wireless WiFi 6 IP PBX System
Key Features
- Wi-Fi 6 wireless networking with dual-band connectivity
- Built-in IP PBX for up to 12 users
- Five Gigabit Ethernet ports with flexible WAN/LAN configuration
- Up to 1Gbps NAT and 900Mbps IDS/IPS throughput
- Advanced firewall, VPN, QoS, and content filtering
Specifications
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | GCC6010W |
| Product Type | Wireless WiFi 6 IP PBX System |
| Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Wi-Fi Band | 2.4GHz & 5GHz |
| 2.4GHz Maximum Data Rate | Up to 573.5Mbps |
| 5GHz Maximum Data Rate | Up to 3603Mbps |
| MU-MIMO | 2×2:2 on 2.4GHz / 3×3:3 on 5GHz |
| Internal Antennas | 3 |
| 2.4GHz Antenna Gain | Up to 4dBi |
| 5GHz Antenna Gain | Up to 6dBi |
| Ethernet Ports | 5 × Gigabit Ethernet |
| WAN/LAN Configuration | Flexible WAN/LAN configuration |
| Maximum WAN Connections | Up to 3 WAN |
| NAT Throughput | Up to 1Gbps |
| NAT Sessions | Up to 160K |
| IDS/IPS Throughput | Up to 900Mbps |
| IPsec VPN Throughput | Up to 3Gbps |
| VPN Support | IPsec, PPTP, L2TP, OpenVPN®, WireGuard® |
| PBX Users | 12 users by default |
| Concurrent Calls | 4 calls by default |
| Access Point Support | Up to 150 GWN APs |
| Wireless Clients | Up to 500 clients |
| Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3 |
| Network Security | Firewall, IDS/IPS, content filtering |
| Traffic Management | QoS & application-based traffic control |
| Management | GDMS, Web GUI, SSH, SNMP |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 95 × 95 × 193 mm |
| Weight | 565g |
| Power Supply | 12VDC, 1.5A |
| Power Consumption | 18W |
Warranty: 1 Year
Country of Origin: USA
Made in / Assembled: China
Features & Benefits
Wi-Fi 6 Connectivity
Provides high-speed dual-band wireless networking using the latest Wi-Fi 6 technology for improved performance and efficiency.
Integrated IP PBX
Combines business voice communication with networking infrastructure, supporting 12 users and 4 concurrent calls by default.
High-Speed Gigabit Networking
Five Gigabit Ethernet ports provide flexible WAN/LAN connectivity and support up to three WAN connections.
Advanced Network Security
Built-in firewall, IDS/IPS, content filtering, and application control help protect business networks from security threats.
High-Performance VPN
Supports multiple VPN technologies and up to 3Gbps IPsec VPN throughput for secure remote connectivity.
MU-MIMO Technology
Improves wireless efficiency by allowing simultaneous communication with multiple connected devices.
Centralized Device Management
GDMS integration provides centralized configuration, monitoring, and management for supported Grandstream devices.
Scalable Wireless Deployment
Supports up to 150 GWN Access Points and 500 wireless clients for expanding business networks.
Secure Wi-Fi
Supports WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3, secure boot, digital signatures, and device-specific security certificates.
Compact Business Design
The compact mini-tower form factor saves installation space while providing comprehensive networking and communication functionality.
Ideal Applications
- Small and medium-sized businesses
- Corporate offices
- Branch offices
- Retail stores
- Hotels and hospitality businesses
- Educational institutions
- Professional service organizations
- Multi-location business networks
- Integrated Wi-Fi and IP telephony deployments
Why Choose Grandstream GCC6010W?
The Grandstream GCC6010W eliminates the need for multiple separate networking and communication devices by combining Wi-Fi 6, IP PBX, routing, firewall, VPN, IDS/IPS, and centralized management in one platform. It is an excellent choice for organizations looking for a scalable, secure, and simplified infrastructure solution.
Description
The Grandstream GCC6010W Wireless WiFi 6 IP PBX System is an integrated UC and networking solution designed for small and medium-sized businesses. It combines Wi-Fi 6 wireless networking, IP PBX, routing, firewall, VPN, security, and network management into a single compact platform.
The GCC6010W supports the latest IEEE 802.11 a/b/g/n/ac/ax Wi-Fi 6 standards across both 2.4GHz and 5GHz bands. Its internal antenna design delivers up to 4dBi gain on 2.4GHz and 6dBi on 5GHz, with wireless data rates of up to 573.5Mbps on 2.4GHz and 3603Mbps on 5GHz. MU-MIMO technology enables efficient communication with multiple connected devices simultaneously.
For business communications, the built-in IP PBX supports up to 12 users and 4 concurrent calls by default, with upgrade options available for higher capacity. This allows businesses to deploy an integrated voice communication platform without requiring a separate PBX appliance.

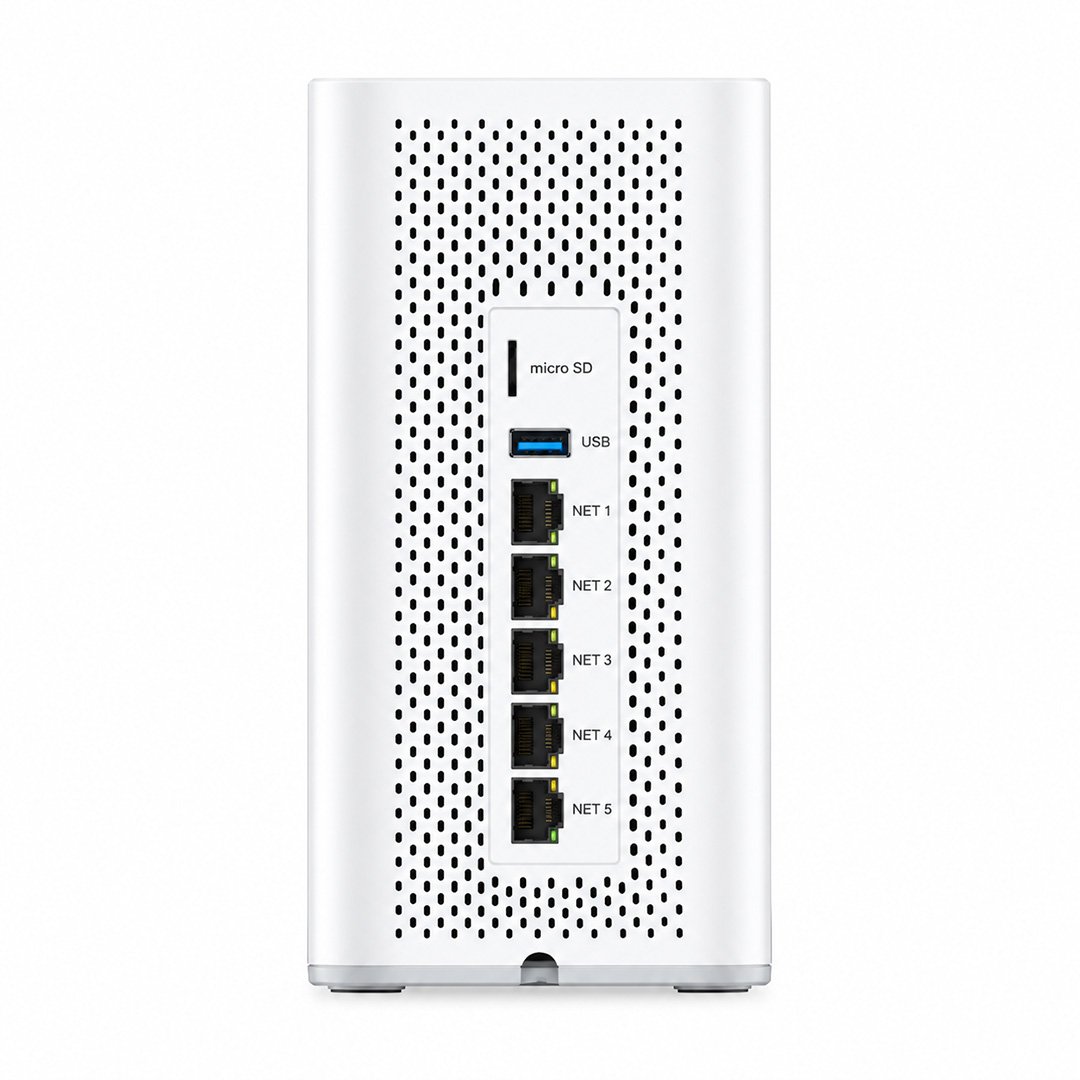

The GCC6010W includes five Gigabit Ethernet ports, which can be configured for WAN and LAN connectivity with support for up to three WAN connections. It delivers up to 1Gbps NAT throughput, 160K NAT sessions, and 900Mbps IDS/IPS throughput, providing strong performance for business networks.
Security is built into the platform through advanced firewall protection, IDS/IPS, content filtering, application-based traffic control, and multiple VPN technologies. It supports IPsec, PPTP, L2TP, OpenVPN®, and WireGuard®, with IPsec VPN throughput of up to 3Gbps.
The system also supports centralized management through Grandstream Device Management System (GDMS), while local management is available through Web GUI, SSH, and SNMP. It can support up to 150 GWN Access Points and 500 wireless clients, making it suitable for growing business environments.
With its compact mini-tower design, low power consumption, comprehensive networking features, and integrated IP PBX capabilities, the Grandstream GCC6010W provides a practical all-in-one solution for modern business communication and networking requirements.
