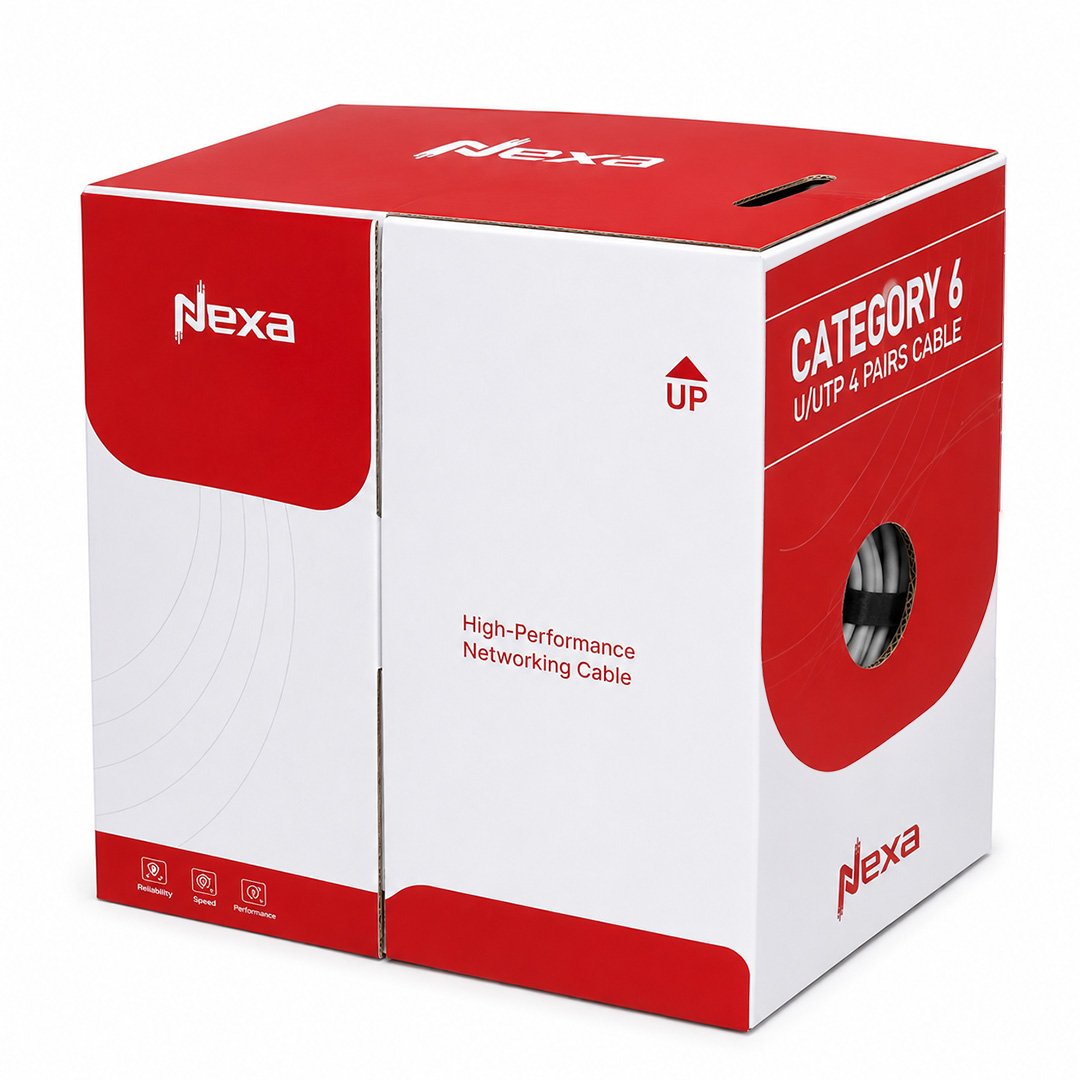

Nexa Cat.6 UTP Cable Solid Wire 0.57mm 23AWG
NEXA 4-Pair U/UTP Cat6 cable has been designed to support high-speed data transmission systems such as Gigabit Ethernet for mission-critical LAN applications or future-proofing structured cabling systems. The cable is characterized to 250MHz and PowerSum NEXT tested. We confirm that the cable is used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.
Products Characteristics
• Conductor Diameter: 0.57mm ± 0.008mm
• HDPE Solid Insulation: 1.02mm ± 0.02 mm
• HDPE Filler: 4.5* 0.45mm
• Outer Jacket Thickness: ≥ 0.50mm
• External Diameter: 6.2mm±0.5mm
• Linear Resistance: Max.<85Ω/km
• Mutual Capacity (nom.): 5.6nF/100M
• Unbalance Capacity Max (p/p at 1 KHz): 1500 pF/km
• Characteristic Impedance (1 to 100 MHz): 100 ±15Ω
• Velocity OF Propagation (f>1 MHz): 69% of c
Complied Standards
• ISO/IEC 11801:2011(Ed.2.2)
• IEC 61156-5:2009(Ed.2.0)
• EN 50173-1:2011
• EN 50173-2:2007 including amendment A1:2010
• ANSI/TIA-568-C.2:2009
• TIA/EIA-568B.2-2001
Application
• IEEE 802.3: 1000BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T
• ANSI/TIA/EIA-854: 1000BASE-TX
• 155 Mb/s, 1.2 Gb/s ATM
• ANSI X3.263: 100 Mb/s
• IEEE 802.3af DTE Power (POE)
• 4/16 Mb/s Token Ring
• Digital Video
• Broadband and Baseband Analog Video
